Triangle Precast Concrete Magnetic Reveal Strip

Unit Price: USD 14.0000 / Piece/Pieces
Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 18 Days

Basic Info

Model No.: NSM-10B

Application: Industrial Magnet

Shape: Strip

Coating: Nickel

Grade: N35

Size: 10x10mm

Material: Steel+Magnet

Length: 3 Meter Or 2 Meter

Additional Info

Packaging: Carton

Productivity: 40000pcs/year

Brand: Shine

Transportation: Ocean,Air

Place of Origin: China

Certificate: ISO9001 CE ROHS

HS Code: 8302410000

Port: Ningbo,Shanghai

Product Description

Product Description:

Magnetic Steel Chamfer is designed to create beveled edges on the corners and faces of  precast concrete wall panels and small concrete items.The magnets are embeded in the steel and sealed with an epoxy material to insure no damage from concrete or maximum reuse. They provide fast and accurate placement of the chamfer in steel formwork construction as well as significant labor and material savings by eliminating much of the building finish problems that occur with wood products.Simply position the magnetic strip on the formwork table the built in magnets securely hold it in position. The magnetic chamfer are made of steel as standard. Standard length is 3m. Supplied with magnets on one or two faces along the full 100% length or just along 50% of the length.


Product Picture:

19


Product Features:


(1): Magnetic encased in steel with high adhesive force.

(2): Won't pull out under normal use

(3): No open grooves to fill with the concrete.

(4): Custom Specification is welcomed

(5): Single side or Double sides Magnetic Steel chamfer is available.

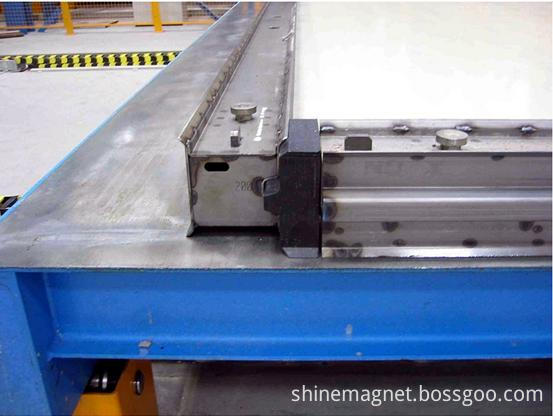

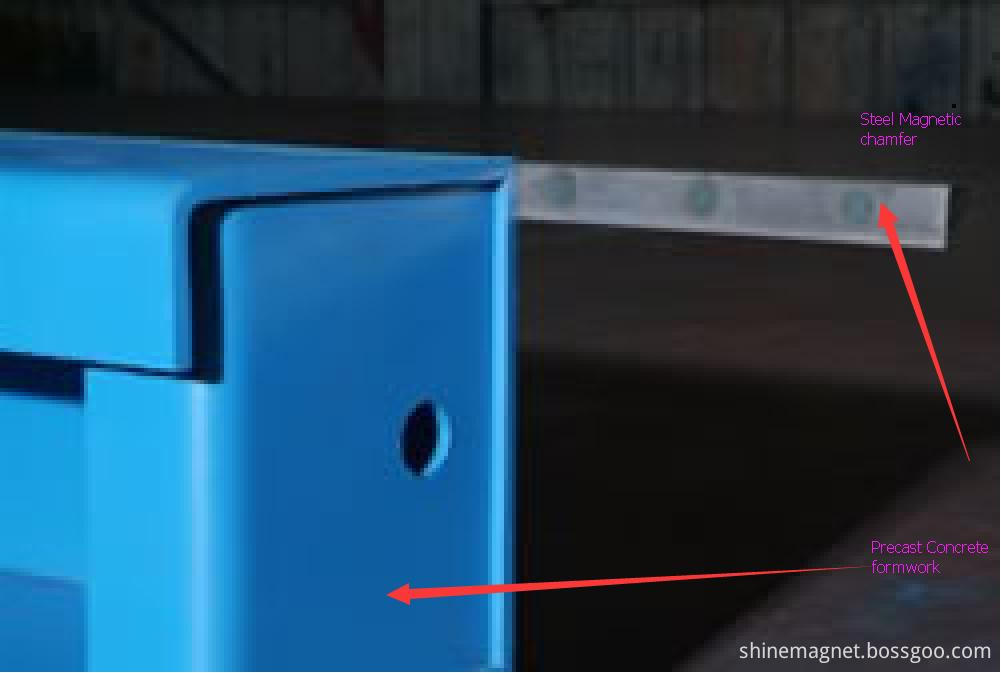

Main Application:



apllication1


application2

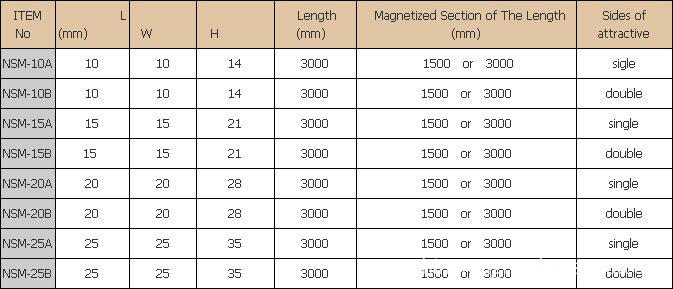

Main Type of Steel Magnetic Chamfer:


chart



 Detailed FAQ:


1.What is the PC component template magnetic fixing device?What role does it play in the production of PC components?

The production of PC components is usually made of steel mold and precast concrete,the traditional fixed mold combination is used screw fixation,at this way, to spend a lot of time in the process of group mode and dismantling, artificial,there may be a need to punch holes on the platform, or even different component sizes in different locations,so this destroys the platform, shortens the service life, and may even affect the quality of the component,the use of high strength rare earth permanent magnet materials produced by magnetic fixing device can solve these problems.We fix the PC component template by magnetic force,Fixed device to replace the screw nut called PC magnetic component template fixing device.The magnetic fixing device is closely combined with the steel mould and the platform through the magnetic force and does not produce any damage to the die,And our magnetic device design of the switch system, by closing the magnetic force, can be quickly and easily remove the mold.

2.What is the advantage of your company's fixed die box? How long is the service life? What is the cost? What is the quality standard?

The quality of the fixed magnetic box is reliable and the technology is mature in Shine Magnetics.We can according to customer needs, design and production of different suction, different sizes of magnetic boxes,At the same time, according to the customer's different template specifications, size, the use of the environment, the design of the corresponding fixture system.Our advantage is also reflected in the timely delivery and thoughtful service.

We design a convenient switch system and a special switch(releasing tool) in supporting the crowbar, the switch is closed, the magnetic sealing performance, it is very safe and convenient.

Because the magnetic box is a permanent magnet, in the operating temperature range, in principle, is to maintain permanent magnetic force,At the same time, the design also takes into account the harsh environment of the construction site.However, as a kind of tool, the service life of the magnetic box is related to the usage, the use environment and the maintenance.

We are specialized in the production of magnet assembly plant, has the advantages of processing facilities and large-scale production, so our price is very competitive in the market.

We have a professional test equipment for magnetic box suction, to ensure that each product is in line with customer requirements for suction,At the same time, we require that the magnetic box in the closed state of the switch, the magnetic shielding effect is good, workers can easily remove the magnetic box from the platform.


3.What are your clients at home or abroad? What is the market share? What are the items currently being used in your company?


Our PC component template magnetic fixed device in 2010 on the bulk of exports to the Middle East, Southeast Asia and other countries, in overseas has a good reputation and visibility

In the domestic market, we have a lot of in-depth discussions with the component manufacturers, some of which have been used in batch production of components of our products, such as YUHUI, HaiLong, ZHONGTIAN.


4.How to choose the appropriate PC component template magnetic fixing device, what is a good suggestion?


(1):First of all, We think it is necessary to select the appropriate size of the magnetic box according to the different components.If the suction is insufficient, will cause the fixed template is not solid, affect the quality of components, it is The loss outweighs the gain.

(2):Secondly, the product is rust, sealing performance, maintenance is convenient, that is, product life.The magnetic box may cause the work of magnetic attenuation in the use process, this is because of the combination between the surface and the magnetic platform is not tight enough to work with concrete goods Other Waste accumulation in the magnetic surface, affecting tightly, attenuation caused by suction.At the same time, if there are concrete or other garbage into the magnetic box inside, or switch rust, affect the use of switches, may also cause the magnetic field can not be closely linked with the platform, and then magnetic attenuation.

(3):Finally, the product is safe to use, light, that is, when the switch is closed, the work of the magnetic force is significantly attenuated, whether it is easy to move the magnetic box.




5.What are the core technologies of your company's PC component template fixing technology?

As a professional manufacturer of magnetic components, our core advantage is through reasonable magnetic circuit design, with a magnet the least resources, with minimal cost, achieve maximum magnetic work, and how to design a magnetic device can ensure the safe and convenient use, and we already have a design method of their own, to make magnetic different kinds of suction box.



6.What do you think of the development of domestic housing industry in recent years? How does this affect your future business development or policy?

According to the characteristics of our products and business direction,We are more concerned about the concept of building industrialization, that is, not only includes residential industrialization, but also includes other prefabricated, industrial production of building components.To improve productivity and reduce environmental pollution, building industrialization is an inevitable development direction.We adhere to the direction of the market, adhere to the professional division of labor, industrial chain upstream and downstream cooperative development concept.In our field of expertise, we want to do large-scale, standardized, which is conducive to reducing the cost of the development of the industry, enhance the ability of the industry chain collaboration.
